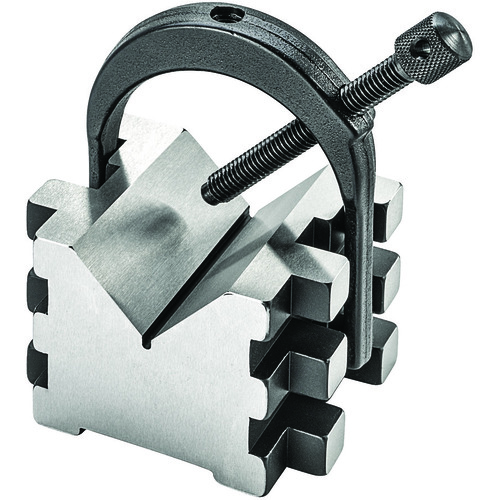

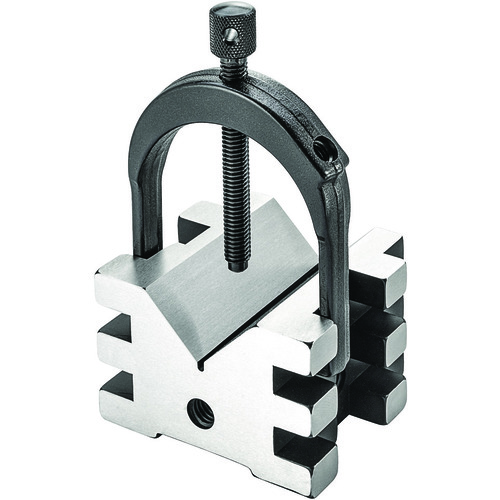

V-Block & Clamp Set - Model 568A–2″ × 3″ × 2 1/2″
Additional Canadian Tariff of 25 %
| Type | V-Block & Clamp Set | Includes | V-Block and Clamp |
| Overall Length | 2 1/2″ | Model No | 568A |
| Overall Width | 2″ | Number of Blocks | 1 |
| Overall Height | 3″ | Capacity | 2″ |
Product Features
| Remarks | •Wide Range V-Blocks •Clamp can be mounted on V block in low or high position for small or large work. Clamps do not project; block can be used on base, ends or sides. Block holds round work up to 2 diameter and square work up to 1–7/16 (or 1–9/16 square with screw at top). Tapped holes for mounting the V block on face plates or angle irons. V block is made of hardened steel. All sides are precision ground parallel and square and V-groove ground central and parallel to sides and base. V-grooves of matched pairs have perfect alignment. | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
6.30000
Package Width
3.50000
Package Height
3.70000
Package Weight
3.35
