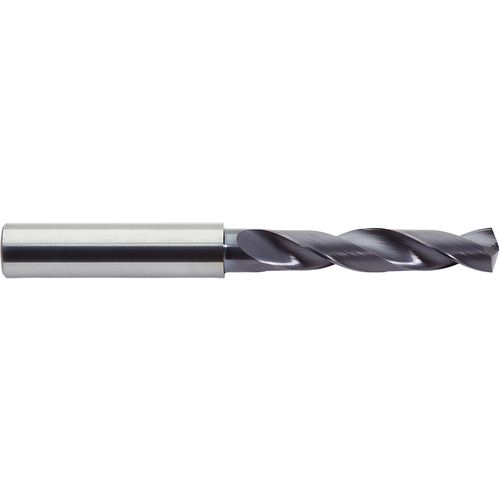

3 mm Dia. × 3 mm Shank × 16 mm Flute Length × 57 mm OAL, 3xD, 142°, AlTiN, 2 Flute, External Coolant, Round Solid Carbide Drill
Alternate Manufacture # 02100
| Drill Bit Size / Cutting Diameter (DC) | 3 mm | Shape | Solid Carbide |
| Decimal Equivalent | 0.1181″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3 mm | Tool Type | Solid Carbide Drills |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiAlN | Series/List # | 2XDSS |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 16 mm |
| Coolant Supply Property (CSP) | External | Length Chip Flute (LCF) | 16 mm |
| Point Angle (SIG) | 142 Degrees | Overall Length (OAL) | 57 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Shank Type | Round |
Product Features
| Family Description | Alternate Manufacture # 02100 | Country of Origin | UNITED STATES |
| Remarks | •ALtima® (AlTiN) coated for extended tool life •Drills can be reconditioned and recoated •142° Point angle, 30° helix angle •Recommended for a broad cross section of materials at increased feed rates |
Shipping Info
Package Length
2.20000
Package Width
.31000
Package Height
.31000
Package Weight
.011
