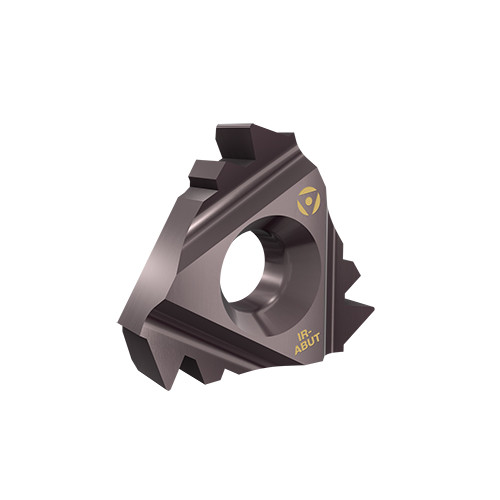

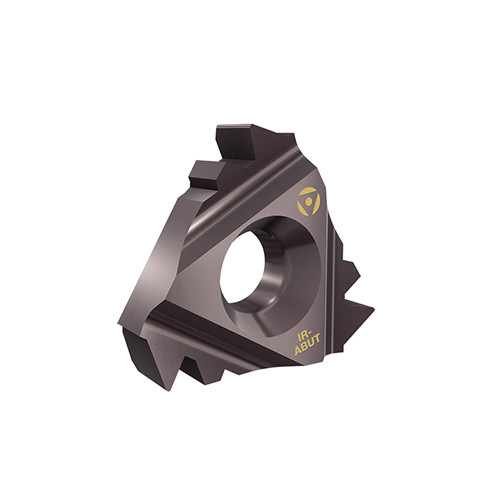

11IR 20ABUT AC22A
Internal Right Hand American Buttress Laydown Threading Inserts for High Force Transmission in One Direction
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.433″ | Chip Breaker Type | Z |
| Threads per Inch (TPI) | 20 Threads/" | Shape | Triangle |
| Corner Radius (RE) | 0.0027″ | Threads per Inch Minimum (TPIN) | 20 Threads/" |
| Grade | AC22A | Threads per Inch Maximum (TPIX) | 20 Threads/" |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | ABUT |
| Insert Style | Laydown (LT) | Profile Distance EY (PDY) | 0.04″ |
Product Features
| Family Description | Internal Right Hand American Buttress Laydown Threading Inserts for High Force Transmission in One Direction | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
