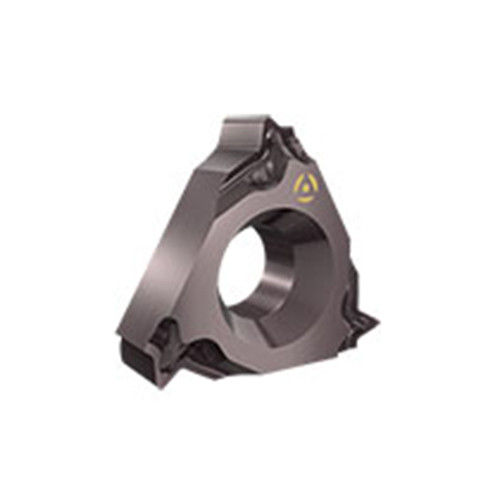

16IR 26W AC22A
Internal Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.63″ | Chip Breaker Type | Z |
| Threads per Inch (TPI) | 26 Threads/" | Shape | Triangle |
| Corner Radius (RE) | 0.0039″ | Cutting Item Count (CICT) | 1 |
| Grade | AC22A | Threads per Inch Minimum (TPIN) | 26 Threads/" |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 26 Threads/" |
| Cutting Edge Material | Carbide | Tool Type | Threading Regular Inserts |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Body Material | Carbide |
| Insert Style | Laydown (LT) | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Internal Right Hand Whitworth (BSW, BSF, BSP) B.S.84-1956 DIN 259 Medium Class Full Profile Laydown Threading Inserts | Country of Origin | Israel |
Shipping Info
Package Weight
0.000
