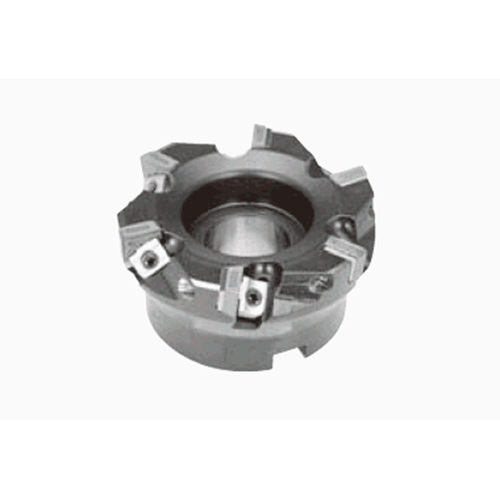

TZP19080R
Z-feed plunging cutter for roughing operation with wedge clamp

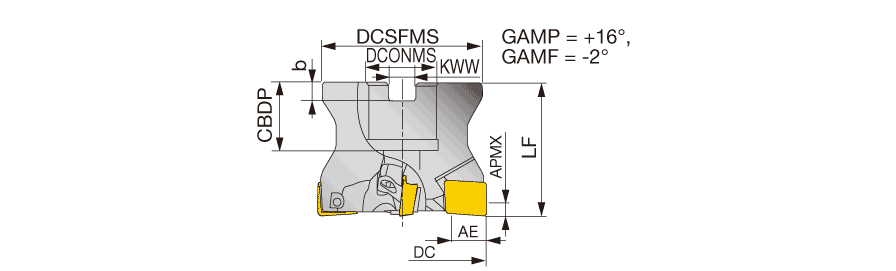

| Application | | Profile Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 80 mm | Measurement Type | Metric |
| Cutting Item Count (CICT) | 4 | Tool Type | Plungers cutters |
| Depth of Cut Maximum (APMX) | 0.5 mm | Functional Length (LF) | 1.32 kg |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Body Material | Steel |
| Overall Length (OAL) | 63 mm |
Product Features
| Family Description | Z-feed plunging cutter for roughing operation with wedge clamp | Country of Origin | JAPAN |
Shipping Info
Package Weight
3.695
