TD170008518R01
Coolant Through Holds +.002/-.000 on Hole Diameter

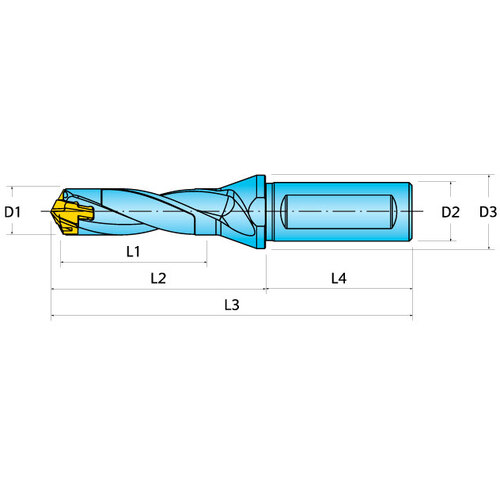

| Usable Length (LU) | 3.35″ | Functional Length (LF) | 4.02″ |
| Application | | Drill Mill | Drilling | | Shank Length (LS) | 1.97″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 17 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.6693″ | Flange Diameter (DF) | 0.98″ |
| Cutting Diameter Maximum (DCX) | 0.7047″ |
Product Features
| Family Description | Coolant Through Holds +.002/-.000 on Hole Diameter | Country of Origin | Usa |
Shipping Info
Package Weight
0.353
