BT40ODP16X106

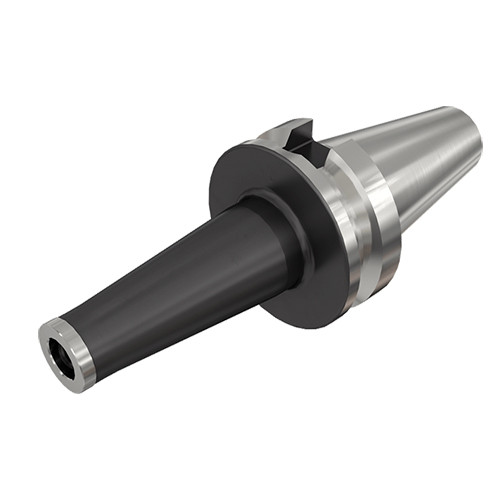

TungFlex modular tooling system with BT shank

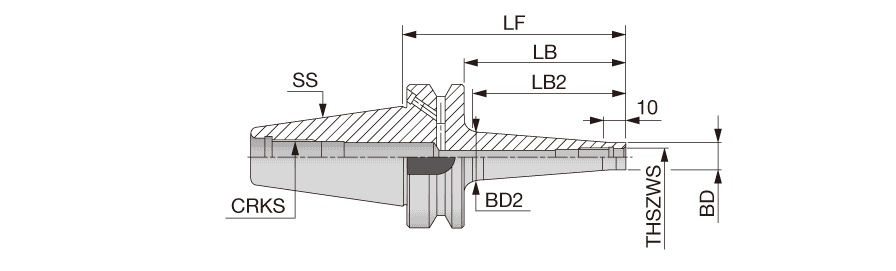

| Shank Size (SS) | 40. | Tool Type | BT |
| Body Length (LB) | 3.11″ | Nose Diameter | 6.748″ |
| Body Diameter (BD) | 1.142″ | Overall Length (OAL) | 4.173″ |
| Application | | Tapered shape interface | | Measurement Type | Inch |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Material | Steel |
| Body Length_2 (LB_2) | 2.756″ |
Product Features
| Family Description | TungFlex modular tooling system with BT shank | Country of Origin | ITALY |
Shipping Info
Package Weight
3.036
