MT2ER20X48.5

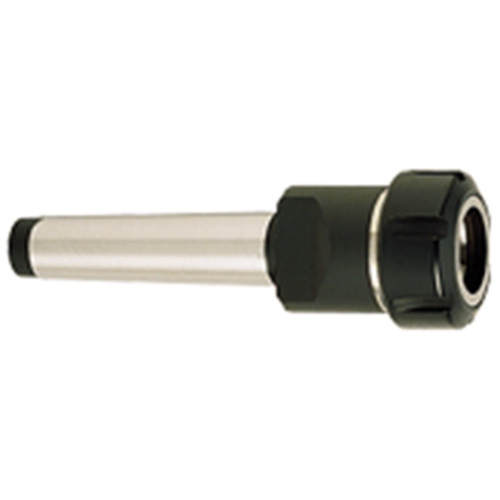

ER collet chuck holder with Morse Taper

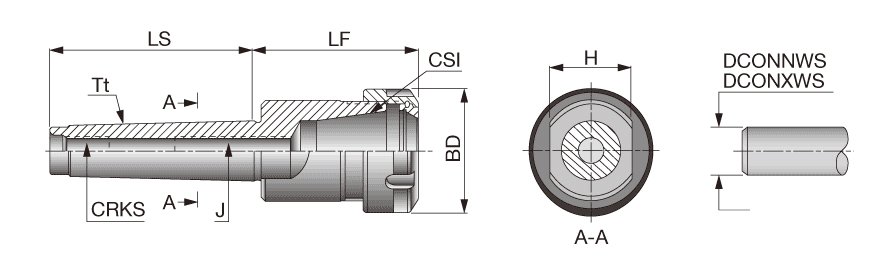

| Shank Size (SS) | MT 2 | Tool Type | Morse Taper |
| Connection Size (CSI) | ER20 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Body Diameter (BD) | 34 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Shank Length (LS) | 64 mm | Measurement Type | Metric |
| Functional Length (LF) | 48.5 mm | Body Material | Steel |
| Application | | Tapered shape interface | |
Product Features
| Family Description | ER collet chuck holder with Morse Taper | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
