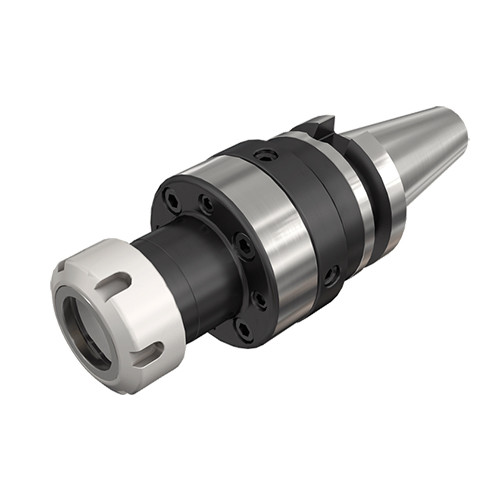

ADJ BT50 D70 ER32
ER Collet Chucks with Center Alignment and BT Shanks

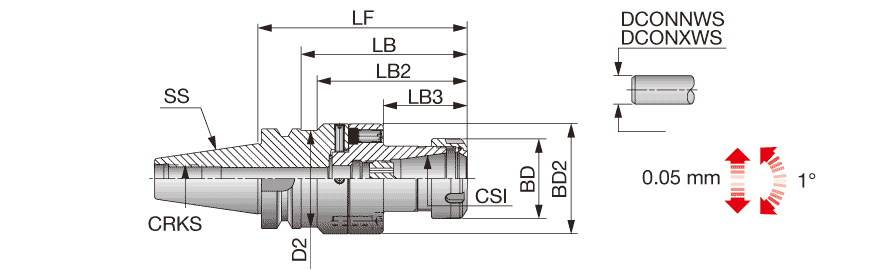

| Shank Size (SS) | BT50 | Functional Length (LF) | 5.689″ |
| Connection Size (CSI) | ER32 | Application | | Tapered shape interface | |
| Body Diameter (BD) | 1.969″ | Tool Type | BT |
| Body Diameter_3 (BD_3) | 2.756″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 4.193″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Length_2 (LB_2) | 4.193″ | Measurement Type | Inch |
| Shank Length (LS) | 4.008″ | Body Material | Steel |
Product Features
| Family Description | ER Collet Chucks with Center Alignment and BT Shanks | Country of Origin | ISRAEL |
| Remarks | Wrench is not included. |
