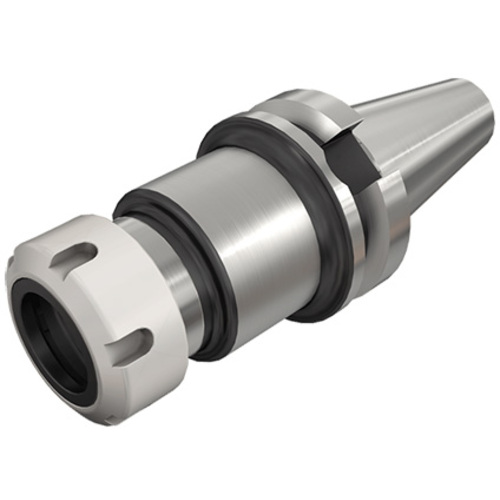

BT50ER50X150
ER collet chucks with BT shank

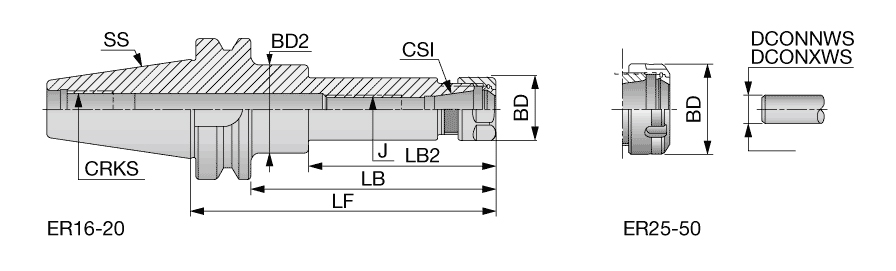

| Shank Size (SS) | BT50 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER50 | Tool Type | BT |
| Body Diameter (BD) | 3.071″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.394″ |
| Body Length (LB) | 4.409″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.339″ |
| Shank Length (LS) | 4.008″ | Measurement Type | Inch |
| Functional Length (LF) | 5.906″ | Body Material | Steel |
Product Features
| Family Description | ER collet chucks with BT shank | Country of Origin | ITALY |
| Remarks | Add B for coolant through the flange. Wrench is not included. |
Shipping Info
Package Weight
0.000
