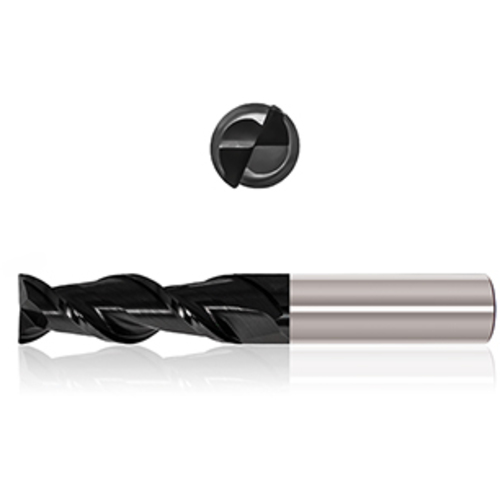

224 1/2X1-1/2X4 2F EXXTRL
2 Flute High Performance End Mill for Finishing Center Cutting, 45° Helix, Exxtral Carbon For Aluminum and Non-Ferrous Alloys

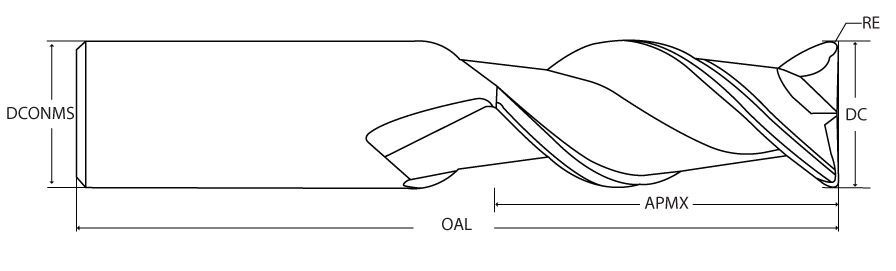

| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 4″ | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | Ta-C | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 2 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Square | Measurement Type | Inch |
| Usable Length (LU) | 1-1/2″ | Series/List # | 224 |
Product Features
| Family Description | 2 Flute High Performance End Mill for Finishing Center Cutting, 45° Helix, Exxtral Carbon For Aluminum and Non-Ferrous Alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
