1/2X1/2X7/8X4 1/8X6_2FL

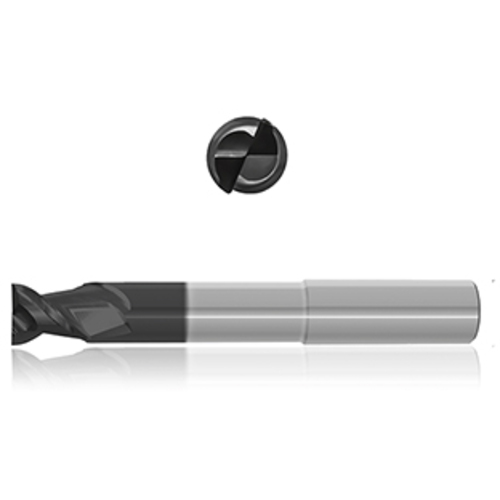

2 Flute High Peformance Endmill for Finishing Center cutting, 45° helix, Reduced Neck, Exxtral Carbon For Aluminum and Non-Ferrous alloys

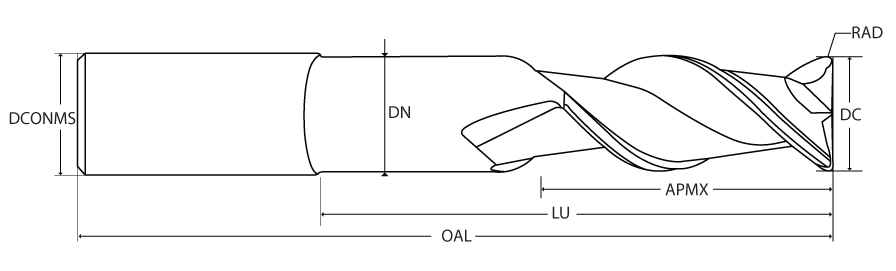

| Cutting Diameter (DC) | 1/2″ | Application | | Finish | HEM | Semi Finish | Shouldering | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 0.015″ |
| Depth of Cut Maximum (APMX) | 7/8″ | Grade | A5005 Exxtral Carbon (DLC) |
| Overall Length (OAL) | 6″ | Neck Diameter (DN) | 0.48″ |
| Cutting Edge Material | Carbide | Tool Type | Solid Carbide Endmill |
| Coating | Ta-C | Maximum Feed per Tooth (fz(max)) | 0.005 ″/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Shank Standard | h6 |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 0.5″ |
| Usable Length (LU) | 4-1/8″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Series/List # | 224 |
Product Features
| Family Description | 2 Flute High Peformance Endmill for Finishing Center cutting, 45° helix, Reduced Neck, Exxtral Carbon For Aluminum and Non-Ferrous alloys | ItemRemark | click here for cutting data |
| Country of Origin | USA |
