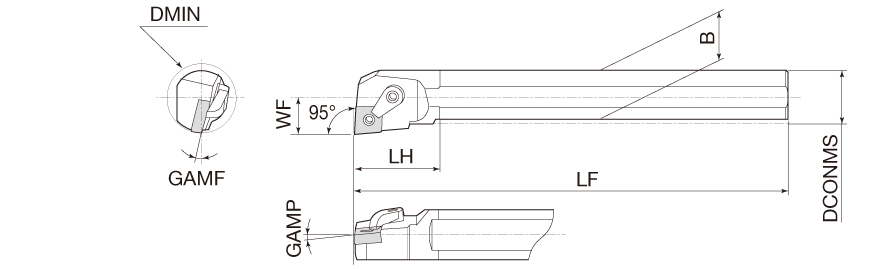

| Connection Diameter Machine Side (DCONMS) | 25 mm | Minimum Bore Diameter (DMIN) | 32 mm |
| Functional Length (LF) | 200 mm | Application | | For 80deg Rhombic insert | |
| Head Length (LH) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 23 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Width (B) | 22.5 mm | Tool Type | INTERNAL INDEXBLE -TURN TOOL |
| Functional Width (WF) | 17 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CNMG120408 | Measurement Type | Metric |

Product Features

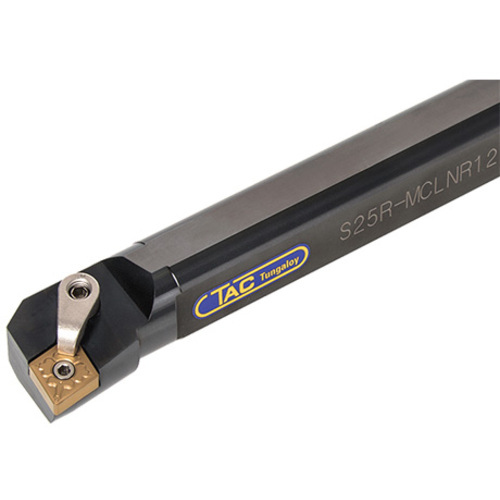

| Family Description | Multi-clamp boring bar, for negative 80 deg rhombic insert | Country of Origin | Japan |
| Remarks | When using a right or left hand insert, the right hand insert (R) is used for the left hand toolholders (MCLNL** type), and the left hand insert (L) is used for the right hand toolholders (MCLNR** type). |
Shipping Info
Package Weight
1.625
