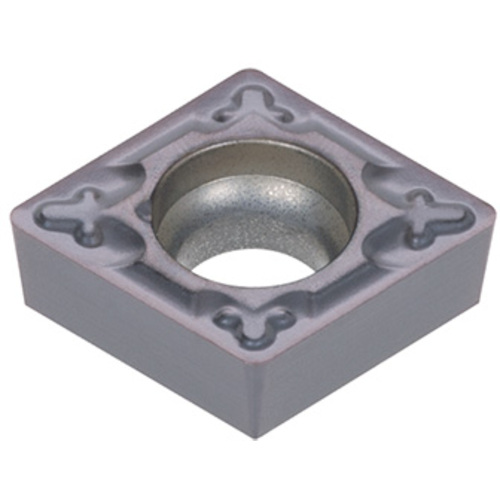

CCGT 21.50.5-01 J740
Positive 7 deg relief angle, G class, 80 deg rhombic insert, for precision finishing
| Applicable Material | | Steel | Stainless Steel | | Min D.O.C. | 0.0007″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0197″ |
| Corner Radius (RE) | 0.008″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.256″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Carbide | Chip Breaker Type | Posi Type-01 |
| Coating | TiN | Measurement Type | Inch |
| Grade | J740 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.238″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7 deg relief angle, G class, 80 deg rhombic insert, for precision finishing | Country of Origin | JAPAN |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.049
