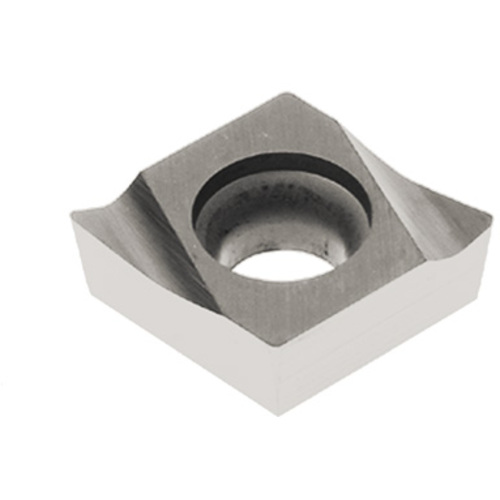

CCGT 21.51 L TH10
Positive 7deg relief ang., G class, 80deg rhombic insert, lead type chipbreaker for finishing to medium cutting
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Min D.O.C. | 0.0393″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.0787″ |
| Corner Radius (RE) | 0.016″ | Min. Turning Feed (ft(min)) | 0.0012 ″/rev |
| Cutting Edge Length (L) | 0.256″ | Max. Turning Feed (ft(max)) | 0.0059 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | Carbide | Chip Breaker Type | LB |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.222″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., G class, 80deg rhombic insert, lead type chipbreaker for finishing to medium cutting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.049
