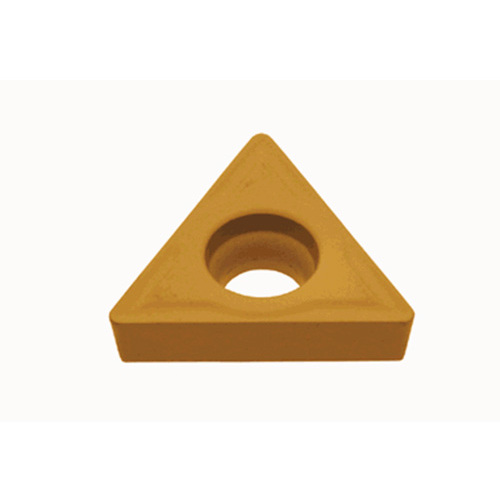

TCMT 21.51-24 NS9530
Positive 7deg relief ang., M class, triangular insert, for medium cutting
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.0196″ |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.1181″ |
| Corner Radius (RE) | 0.0157″ | Min. Turning Feed (ft(min)) | 0.0039 ″/rev |
| Cutting Edge Length (L) | 0.433″ | Max. Turning Feed (ft(max)) | 0.0118 ″/rev |
| Insert Thickness (S) | 0.094″ | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 1/4″ | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | 24 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 0.11″ | Cutting Edge Effective Length (LE) | 0.378″ |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive 7deg relief ang., M class, triangular insert, for medium cutting | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.040
