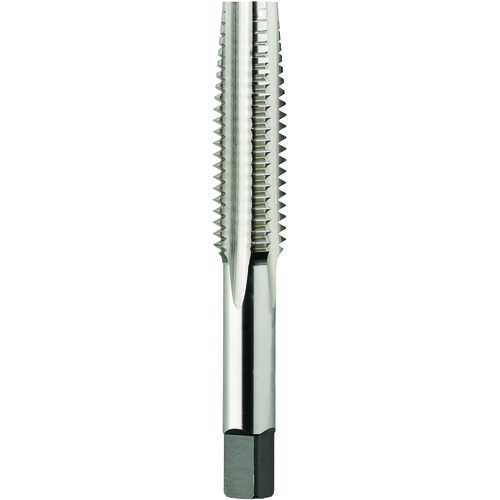

11/16″ NF, 11 TPI, 4 -Flute, H3 Taper Straight Flute Tap Series/List #110
Straight Flute Tap; 11/16″ - 11 ; 4-1/32″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 110
| Thread Diameter Size (TDZ) | 11/16″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 11 | Chamfer | 7 to 10 Threads |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 4-1/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-13/16″ | Style | Taper |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 110 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 11/16″ - 11 |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.2
