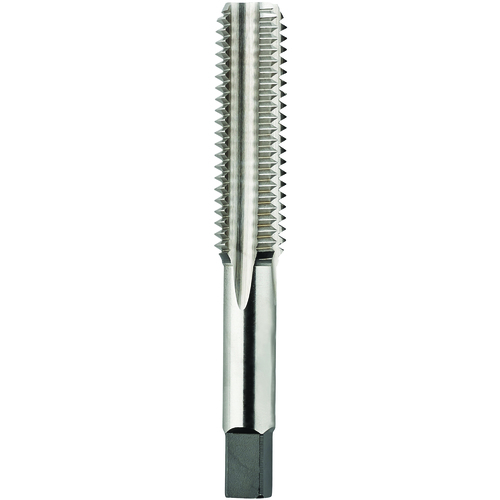

5/8″ NF, 18 TPI, 4 -Flute, H3 Bottoming Straight Flute Tap Series/List #110
| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 18 | Chamfer | 1 to 2 Threads |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 3-13/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-13/16″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 110 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 5/8″ - 18 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
.75000
Package Height
.75000
Package Weight
0.21
