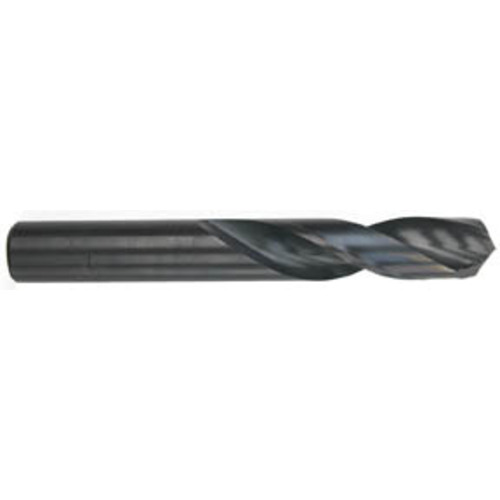

1398 9/64″ HD/SM DRL HSS
Screw Machine Drill; 9/64″ Dia. × 9/64″ Shank Dia. × 1-15/16″ OAL × 15/16″ Flute Length ; 135 Degrees ; HSS ; Black Oxide ; Series 1398
Additional Canadian Tariff of 25 %
| Measurement Type | Inch | Flute Length | 15/16″ |
| Drill Bit Size / Cutting Diameter (DC) | 9/64″ | Flute Type | Standard |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/64″ | Overall Length (OAL) | 1-15/16″ |
| Decimal Equivalent | 0.1406 | Shank Type | Round |
| Angle | 135 Degrees | Style | NAS 907, Type C |
| Shape | Screw Machine | Point Shape | Split Point |
| Coating | Black Oxide | Connection Diameter Machine Side (DCONMS) | 9/64″ |
| Cutting Depth | 15/16″ | Series/List # | 1398 |
| Cutting Edge Material | HSS |
Product Features
| Remarks | Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
2.50000
Package Width
.25000
Package Height
.25000
Package Weight
0.02
