| Tool Type | Taper | Connection Diameter Machine Side (DCONMS) | 0.906″ |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 14 | Chamfer | 2.5P |
| Thread Standard | NPTF | Coating | Uncoated |
| Usable Length (LU) | 1.374″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Overall Length (OAL) | 3-1/4″ | Series/List # | 118 |
| Thread Cutting Part Length (THL) | 1-3/8″ | Thread Size | 3/4″ - 14 |
Product Features

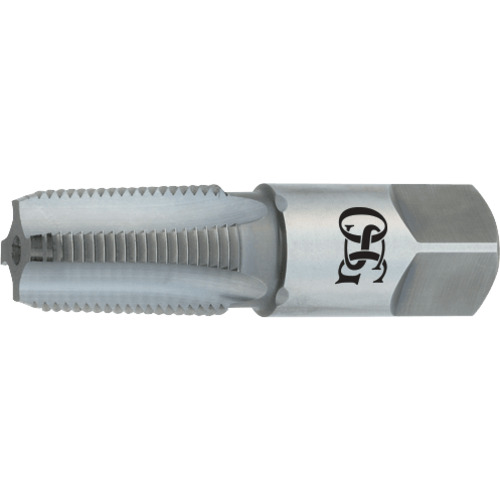

| Remarks | •Taper Pipe Taps Ground Thread •High Speed Steel NPT/ANPT, NPTF | Country of Origin | Mexico |
Shipping Info
Package Length
3.45000
Package Width
1.45000
Package Height
1.40000
Package Weight
0.505
