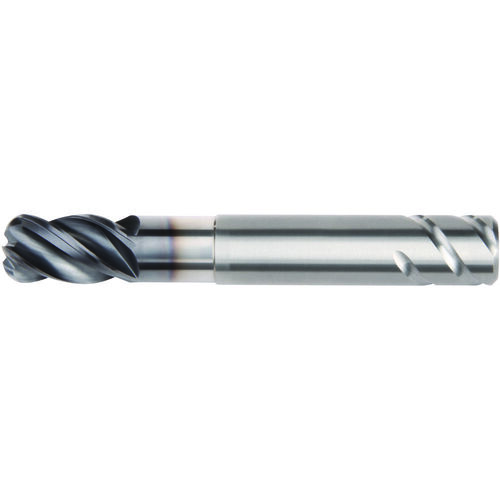

F4AS1000AWL38R300 KCPM15 F4AS1000AWL38R300 KCPM15 HIGH PERFORMANCE SC END MILL
Corner Radius End Mill; 10 mm Dia. × 15 mm LOC × 10 mm Shank Dia. × 76 mm OAL ; 4 FL ; Carbide ; AlTiN
Additional Tariff Surcharge of 8.5 %
| Cutting Diameter (DC) | 10 mm | Flute Helix Angle (FHA) | CW |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 15 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 76 mm | Usable Length (LU) | 30 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 3 mm |
| Coating | AlTiN | Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 |
Product Features
| Remarks | •Kennametal standard dimensions. •Centre cutting. •Unequal flute spacing minimises chatter for smoother machining. •Single tool for both roughing and finishing operations requiring fewer setups. | Country of Origin | USA |
Shipping Info
Package Weight
.1896
